3D PDF musculoskeletal system

Interactive 3D PDF on the anatomy of the musculoskeletal system for use in courses and e-learning.

Design of eight PDFs on different muscle groups of the human musculoskeletal system. These PDFs are used in university courses and in e-learning to impart anatomical knowledge. Because the 3D PDFs can be explored (rotating and zooming the 3D model), the course of the muscles and their attachment can be clearly conveyed.

The following muscles were visualized: M. infraspinatus + supraspinatus, M. Obliquus internus, Mm. Rhomboids, M. pectoralis minor, M. quadratus lumborum, M. pronator teres + Pr quadratus + M. supinator, diaphragm, M interspinalis + intertransversarii + transversospinalis.

Project details:

Content: 8 PDFs

Utilization: Training and education, e-Learning

Specifications: 3D PDF

Client: IST-Studieninstitut

The rights of use for the illustrations shown here lie with the client; use is not permitted. The images are protected with watermarks.

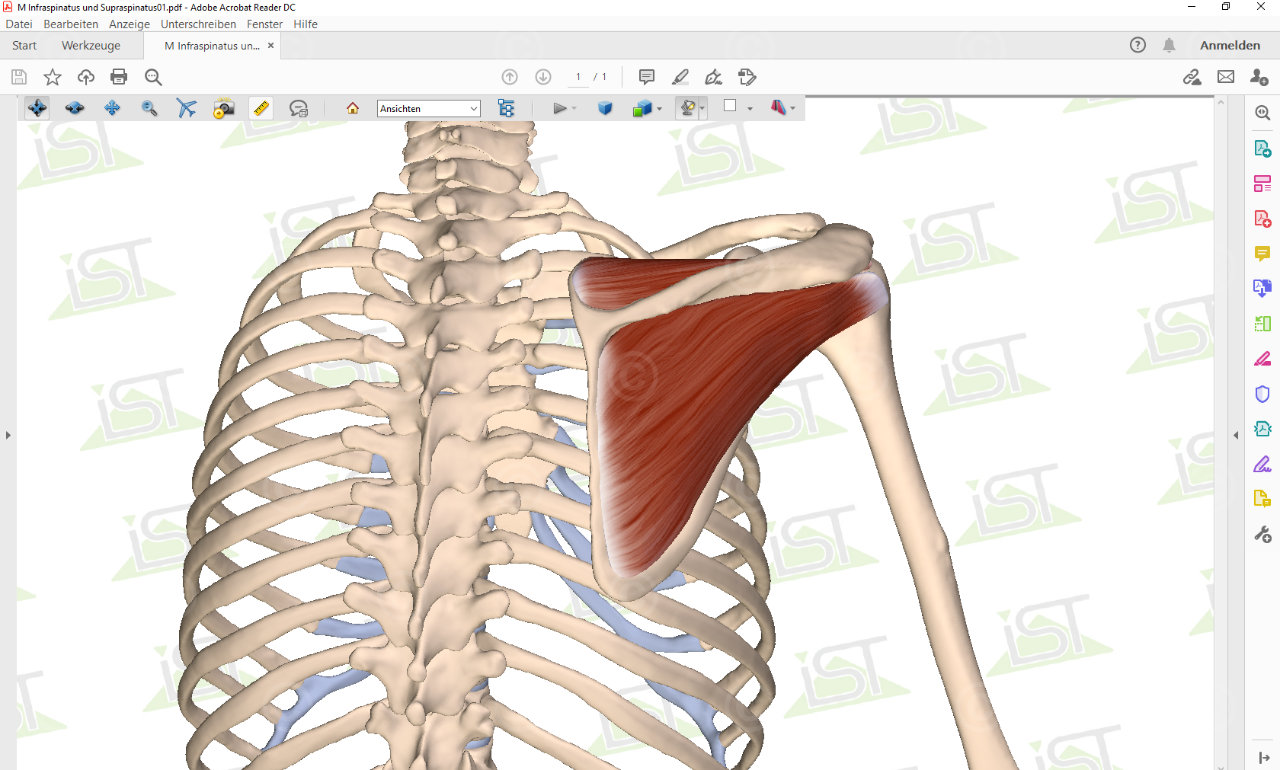

Infraspinatus und Supraspinatus
Infraspinatus und Supraspinatus

Video 3D PDF – navigation, look, section planes:

Music used under Creative Commons license CC BY 3.0: Kevin McLeoad – “As I figure”.
